MAZDA STOCK

Stock No.FD3S-Type RⅡBathurst/One owner, engine overhauled/Side port T45S turbine

Rare! 1994 RX-7! One-owner! Engine overhaul! Side-ported! T45S turbine! PowerFC! Current settings: 375 PS!

Grade: Type R II Bathurst
Year: 1994
Mileage: 95,000 KM
Color: Black
Price: ASK

Description

The vehicle we are introducing is a one owner RX-7 (FD3S) side port and a T45S turbine.
It was purchased as a complete new car and JAM RACING assembled the suspension, roll bar, and intake and exhaust systems.
When JAM RACING later closed, the engine was overhauled by AJITO RACING FACTORY and customized it to side port specification.
An HKS T45S turbine was then fitted and the engine was reset.
The intake, exhaust, drivetrain, braking and cooling systems have all been improved resulting in a highly complete vehicle with a measured output of 375.1 PS.
It also comes with various documents detailing the work done on the car since it was new, as well as a power check sheet. With both its history and details providing a sense of security, this is a car we can recommend with confidence.

Please click here for inquiries

Please refer to the stock number when inquiring.

Vehicle Information

Model Year: 1994
Model: RX-7
Grade: Type RII Bathurst
Color: Black
Mileage: 95,000 km (recorded as of September 10, 1994, with a JAM RACING 320 km meter replacement when new)
Repaired
Maintenance log, record book, warranty, instruction manual, two main keys, one spare key, one genuine keyless entry
One-owner vehicle

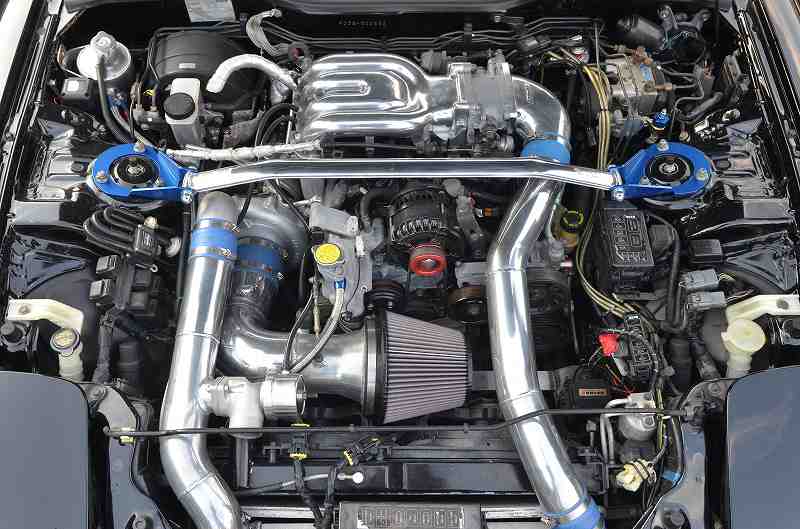

Engine related (AJITO RACING Factory)
2013 engine overhaul, side port fabrication (approximately 15,000 km since fabrication)
・New front and rear rotors replaced
・New front and rear rotor housings replaced
3-piece reinforced apex seal with WPC processing
Engine baffle plate
HKS air pump-less pulley kit
TRUST blow-off valve
New engine harness replaced
ADVANCE black alternator

Turbine related
HKS T45S Turbine
Custom-made 60mm Diameter Stainless Steel Exhaust Manifold
HKS GT II Wastegate

Fuel related
NISMO Large-Capacity Fuel Pump
SARD Fuel Regulator
850cc Fuel Injectors
ORIGINAL BOX ONE G SPORTS Collector Tank

Intake and Exhaust related
K&N Air Cleaner
Custom Suction Pipe
Custom All-Stainless Steel Muffler

Cooling related
Brass 3-layer Radiator
Custom Air Separator Tank
Custom BLITZ 3-Pack Front-Mount Intercooler

Drivetrain and Suspension related
NISMO x HPI Copper Mix Clutch
Stainless Steel Mesh Clutch Hose
・Clutch Release & Master Overhaul (July 2021)
New Transmission Installed
ORIGINAL BOX ONE G SPORTS Shift Tuning Kit
RE Amemiya Reinforced Sleeve Collar
CUSCO TYPE MZ 2-Way Limited Slip Differential
MAZZDA SPEED Reinforced Differential Mount
TEIN Super Racing Coilover Kit
・Eibach Front 15kg, Rear 16kg Springs
ORIGINAL BOX ONE G SPORTS Trailing Link Pillow Replacement
ORIGINAL BOX ONE G SPORTS Full Pillow Ball Bushing Replacement
ORIGINAL BOX ONE G SPORTS Mega Pillow Kit Replacement
ORIGINAL BOX ONE G SPORTS Camber Fix Plates (Front and Rear)
・New Front Stabilizer Link Replaced
SUPER NOW Stabilizer Bracket
ORIGINAL BOX ONE G SPORTS Steering Feel Tuning Kit
ORIGINAL BOX ONE G SPORTS Steering Rack Bushings
・New front and rear hubs (July 2021)
NC Nylon Reinforced Engine Mount

Brakes
RE Amemiya AP Brake Caliper Kit
Front and rear brake rotors replaced with new ones (July 2021)
Front and rear brake caliper overhaul (July 2021)
Brake master overhaul (July 2021)

Body related
ORIGINAL BOX Reinforced Front Member (New Base) (July 2021)
ORIGINAL BOX Intermediate Shaft Rigid Modification
JAM RACING 8-Point Roll Cage
MAZUDA SPEED Reinforced Power Plant Frame
CUSCO Front Tower Bar

Controller & CPU
HKS EVC IV Boost Controller
APEXi POWER FC Actual Vehicle Settings AJITO RACING 375.1PS
APEXi FC Commander
RECHARGE Digital Throttle Sensor

Instrumentation
JAM RACING 320KM Speedometer (New Car Complete)

Exterior
Late-Model Genuine Front Bumper
URAS Front Lip Spoiler
Late-Model Genuine Rear Taillights
MAZDA SPEED Rear Wing (New in 2026)

Tires & Wheels
BBS RG-R Front 17X8.5J +37 Rear 17X9.5J +38
DUNLOP DIREZZA ZⅢ Front 225/45R17 Rear 255/40R17

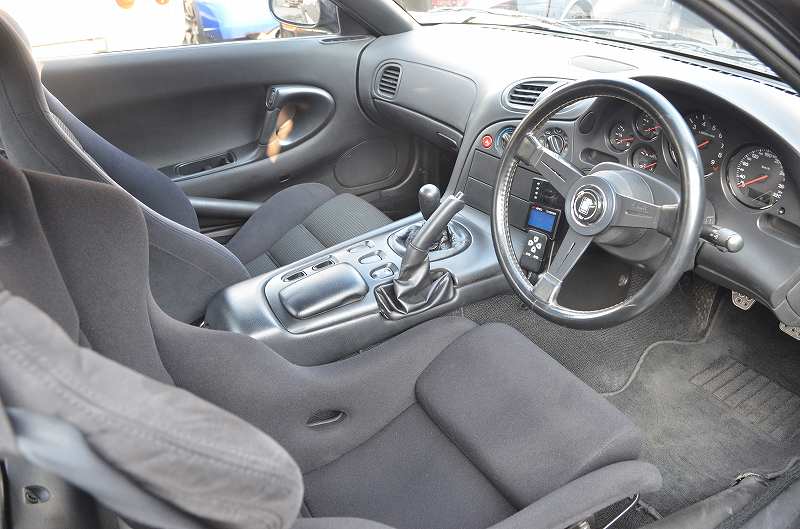

Interior

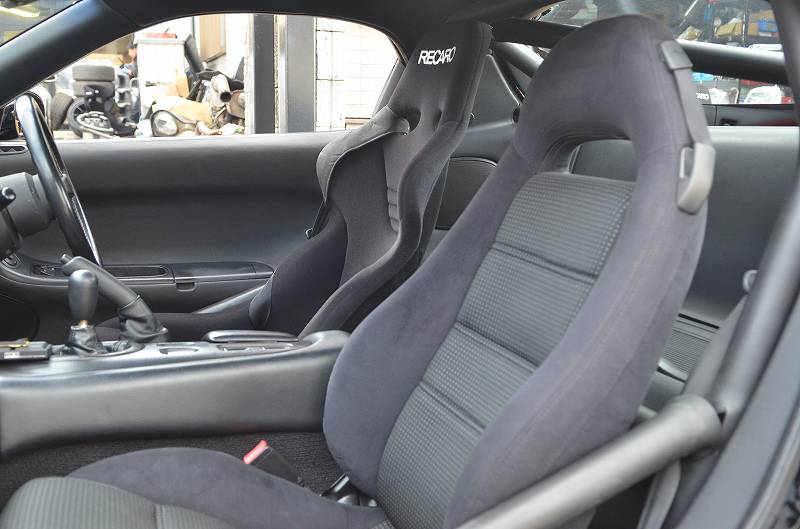

RECARO RS-G Bucket Seats
NARDI Classic Steering Wheel

Other
TWS Unit Replaced
Heater Core Replaced
AUTO STAFF Aluminum Battery Case
